There's no separate "Pie" card type - set Inner Size to Full Pie (0%) on a Donut chart and it renders as a pie.
Best for a low-cardinality breakdown (roughly 5-7 segments) of a single metric by a single dimension - for a longer list, use Table instead.
The tooltip and legend automatically show each segment's percentage of the total - there's no separate toggle for it.
Donut has no stacking concept and no shared/position options on its tooltip (unlike the cartesian charts).

‍

Configuring a Donut Chart

Open or create a report and select Donut Chart (Creating a Card).
Go to the Data tab to select metric and dimension.
Go to the Chart tab to customize appearance.
Go to the Card tab to edit card styling.
Go to the Palette tab to customize segment colors (Palettes).
Go to the Custom tab for advanced JSON overrides (optional).
Click Save when finished.

‍

AI Edit

Open AI Edit and describe the breakdown you want, e.g. "donut of sessions by device." See AI Edit a Card.

‍

Data Tab

Select time period, dimension (segments), metric (values), sorting, and comparison options. Fields come from the Data Model.

Keep the breakdown dimension low-cardinality - a donut with 15+ slivers is hard to read. If your dimension naturally has many values (like campaign name), filter to the top few or switch to a Table.

Full mechanics: see Data Query.

‍

Chart Tab

Customize labels, legend, animations, and tooltip behavior.

Group	Options
Donut Options	Inner Size - Small (40%), Medium (60%), Large (75%), or Full Pie (0%); Border Radius; Show data labels; Show in legend
Legend	Show legend, Horizontal align, Vertical align
Tooltip	Enabled (no shared/position options - each segment has its own tooltip)

Under the hood a donut is a Highcharts pie series with an innerSize - setting Inner Size to Full Pie (0%) closes the hole and gives you a standard pie chart, which is why Jepto doesn't have a separate Pie card type.

‍

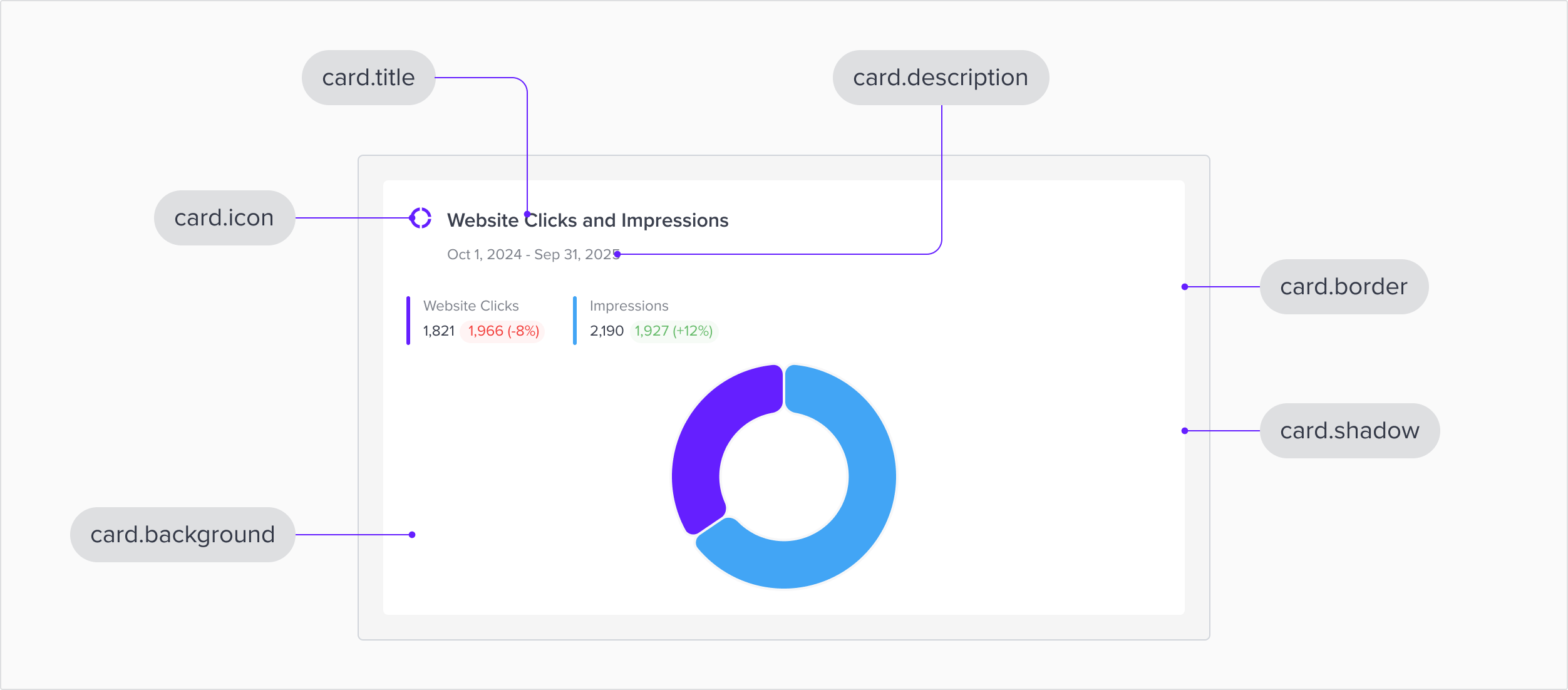

Card Tab

Title, description, icon, and light/dark styling.

‍

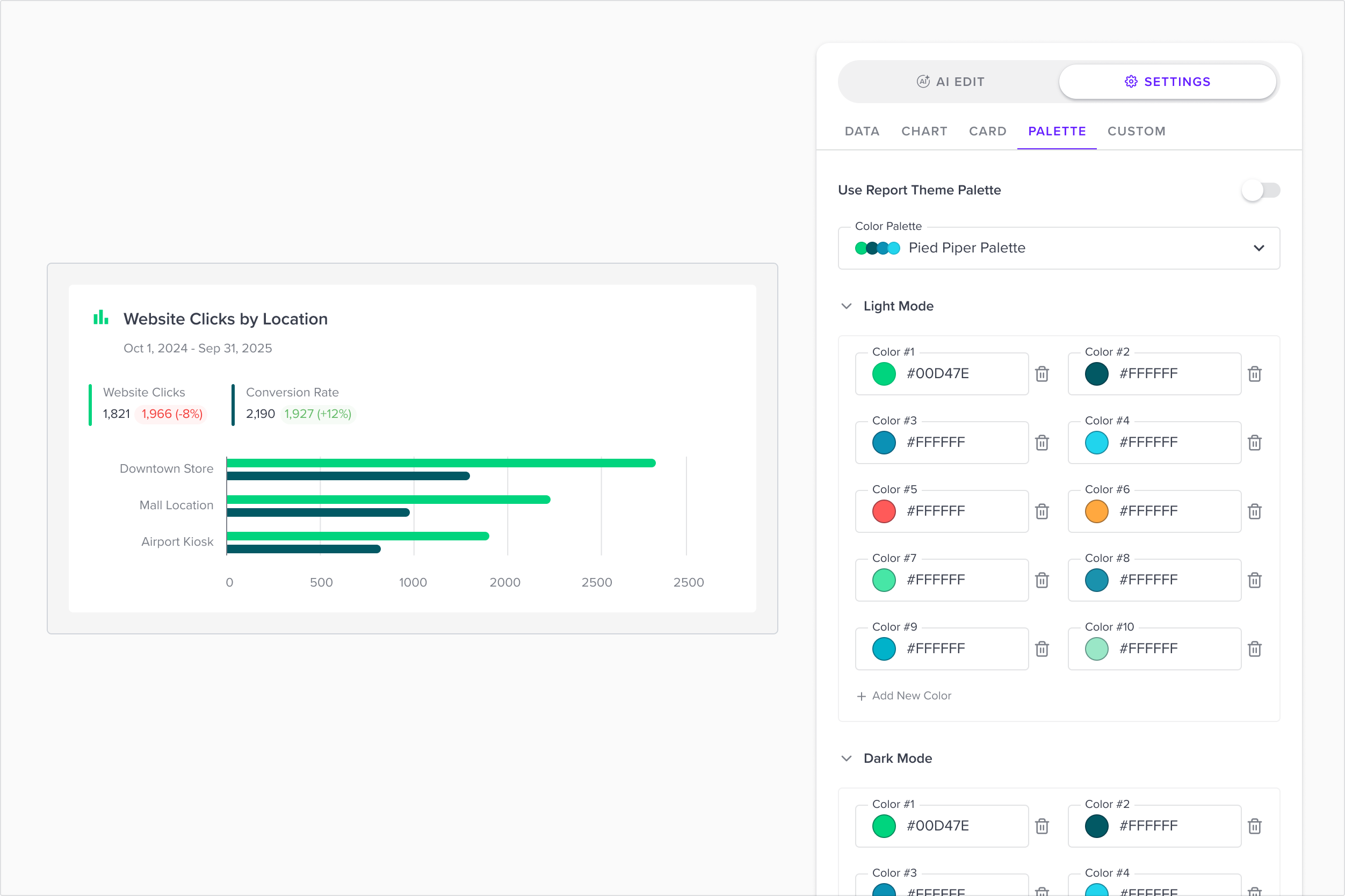

Palette Tab

Segment colors come from the active palette. Use the theme palette or override for this card. See Palettes.

‍

Custom Tab

JSON visualization overrides for advanced Highcharts customization. See Custom Visualizations for merge order, limits, and examples.

‍

Tips for donut charts

Cap it around 5-7 segments - beyond that, slivers become unreadable and the legend gets crowded. Group the rest into a Table instead of forcing them into the chart.
Use Full Pie when you specifically want the pie look - it's the same chart, just with the hole closed.
Turn on data labels for client-facing reports where the exact percentage matters, not just the relative size.
Since percentages are automatic, you don't need a separate metric for "share of total" - just chart the raw metric.

‍

Troubleshooting

Problem	Likely cause	What to try
Too many thin slices	High-cardinality breakdown dimension	Filter to the top segments on the Data tab, or switch to a Table
Can't find a "Pie" chart type	Pie is a Donut with the hole closed	Select Donut Chart, then set Inner Size to Full Pie (0%)
Percentages don't add up how expected	Comparison or filters changing what's included in the total	Check Data tab filters and comparison settings - the total is whatever the query returns
Legend is crowded	Too many segments or long labels	Reduce segments, or turn the legend off and rely on tooltip + data labels
